VW Workshop Papers

This is a work in progress guys!

I'm hoping to get as much info as possible on Golf mk2 & mk3's

 all in one place.


Golf mk3 ABS Lines

Screenshot 2023-08-29 at 20.49.56.png

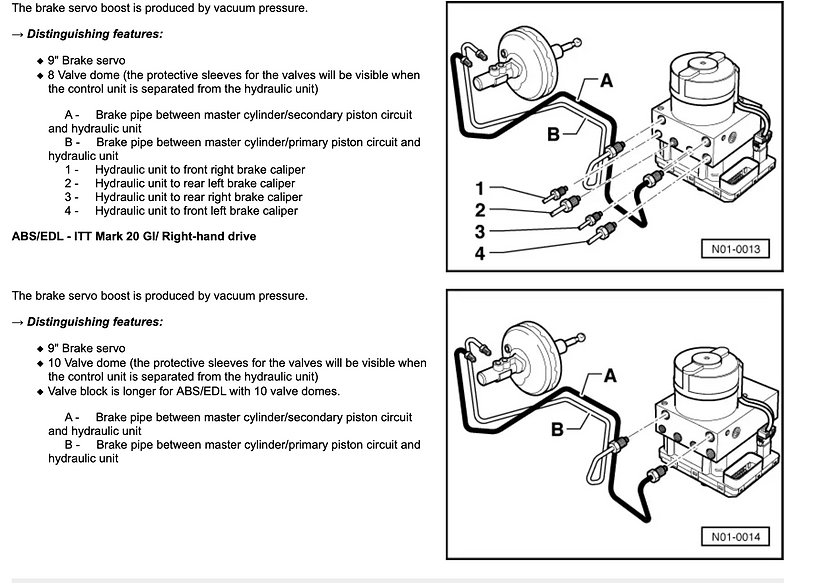

Screenshot 2023-08-29 at 20.50.13.png

Golf mk3 Subframe

Screenshot 2023-08-29 at 20.54.27.png

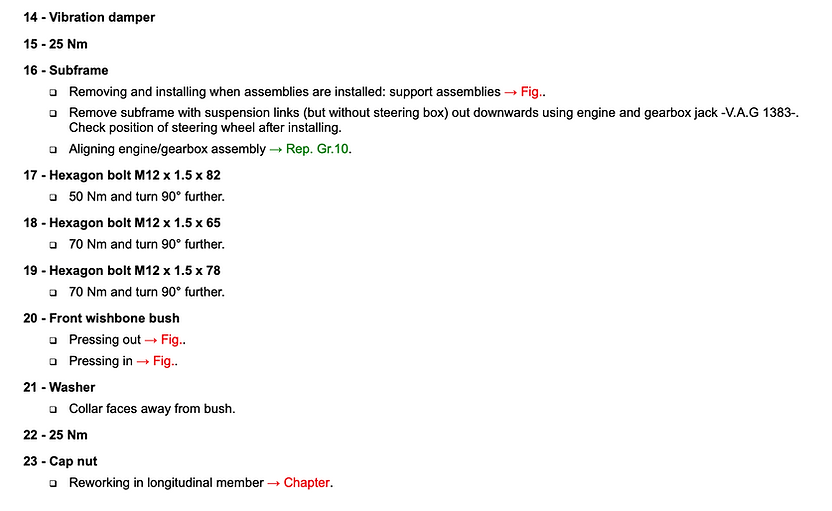

Screenshot 2023-08-29 at 20.55.10.png

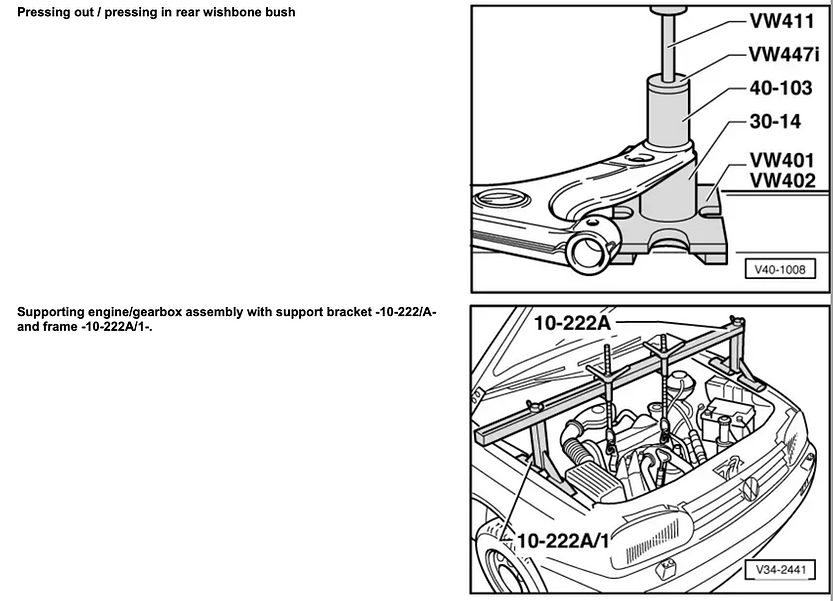

Screenshot 2023-08-29 at 20.56.05.png
Screenshot 2023-08-29 at 20.55.27.png

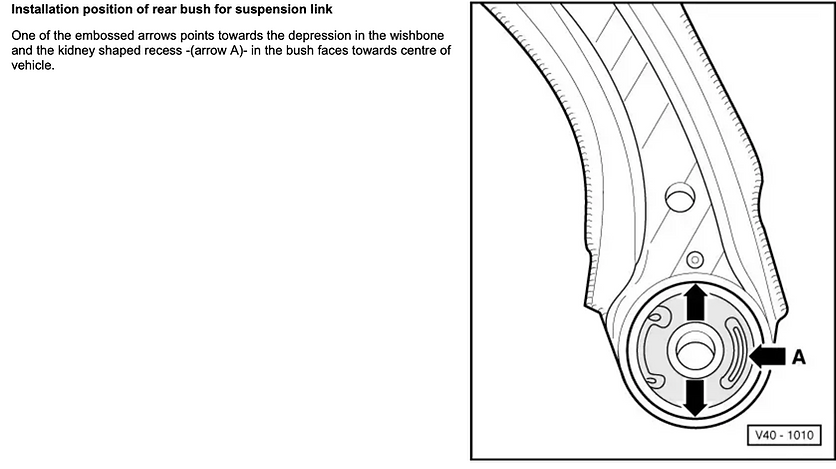

Screenshot 2023-08-29 at 20.55.46.png

Golf mk2 Brakes Info
All brake sizes and diameters

Screenshot 2023-08-31 at 20.58.32.png
Screenshot 2023-08-31 at 13.50.48.png
Screenshot 2023-08-31 at 20.58.10.png

Golf mk2 & mk3
Steering Column Bushing and Bearings

Screenshot 2024-02-13 at 09.39.18.png

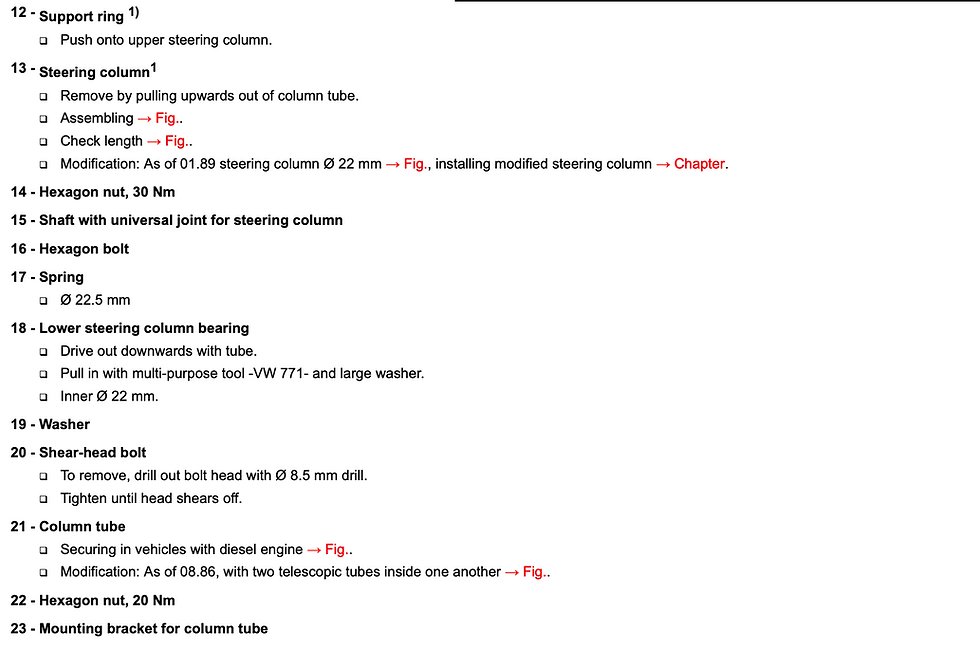

Screenshot 2024-02-13 at 09.39.54.png
Screenshot 2024-02-13 at 09.41.06.png

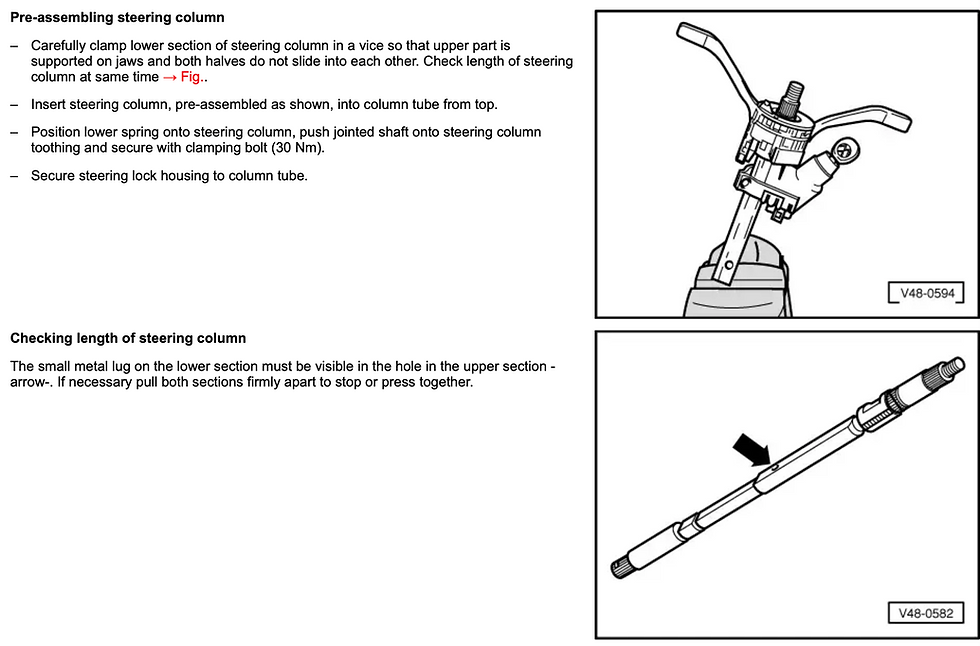

Screenshot 2024-02-13 at 09.40.41.png
Screenshot 2024-02-13 at 09.40.21.png

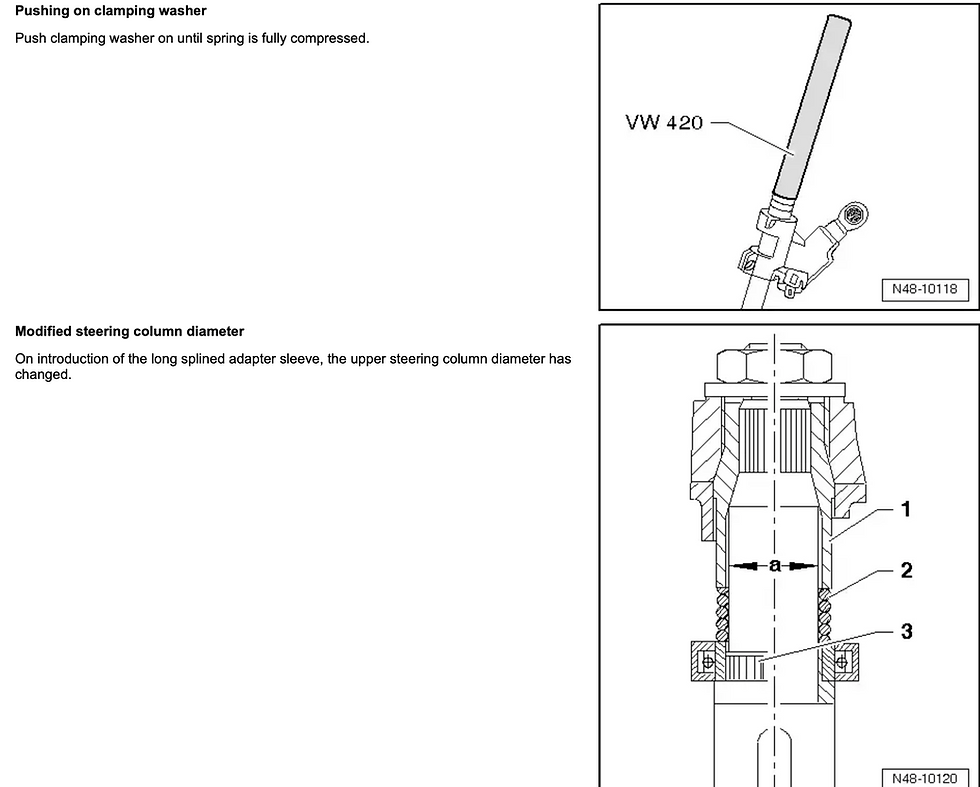

Screenshot 2024-02-13 at 09.41.45.png
Screenshot 2024-02-13 at 09.42.08.png

2.0 16V Engine Code 9A
KE-JET ECU Wiring
Diagram


abf wiring .gif

2.0 16V ABF Wiring Diagram

Screenshot 2024-08-18 at 21.07.10.png
